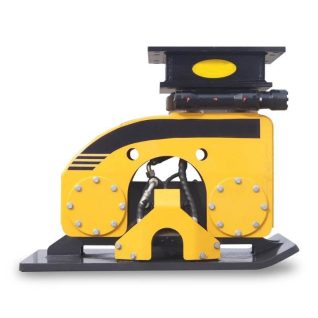

The Hydraulic Vibratory Rammer is designed to be mounted on excavators, replacing the standard bucket at the boom end, and is powered by the excavator’s hydraulic system.
With a compact and robust structure, it offers easy operation and low maintenance. It is suitable for a wide range of terrains and working conditions, and can efficiently perform flat compaction, slope compaction, step compaction, trench compaction, foundation pit compaction, and other complex foundation compaction applications.
| Model | EVC03H | EVC06H | EVC13H | EVC20H | EVC30H |
| Apply To(Ton) | 2-4 | 5-8 | 10-18 | 19-28 | 29-38 |
| Working Flow(L/min) | 30-35 | 30-35 | 40-60 | 60-120 | 60-120 |
| Vibration Plate(T) | 16 | 20 | 25 | 30 | 35 |
| Working Pressure(Mpa) | 14-16 | 14-16 | 14-16 | 21 | 21 |
| Dimensions(mm) | 745*460*680 | 795*500*720 | 1000*850*857 | 1313*895*1042 | 1582*1080*1130 |
| Weight(kg) | 210 | 300 | 570 | 785 | 1280 |
