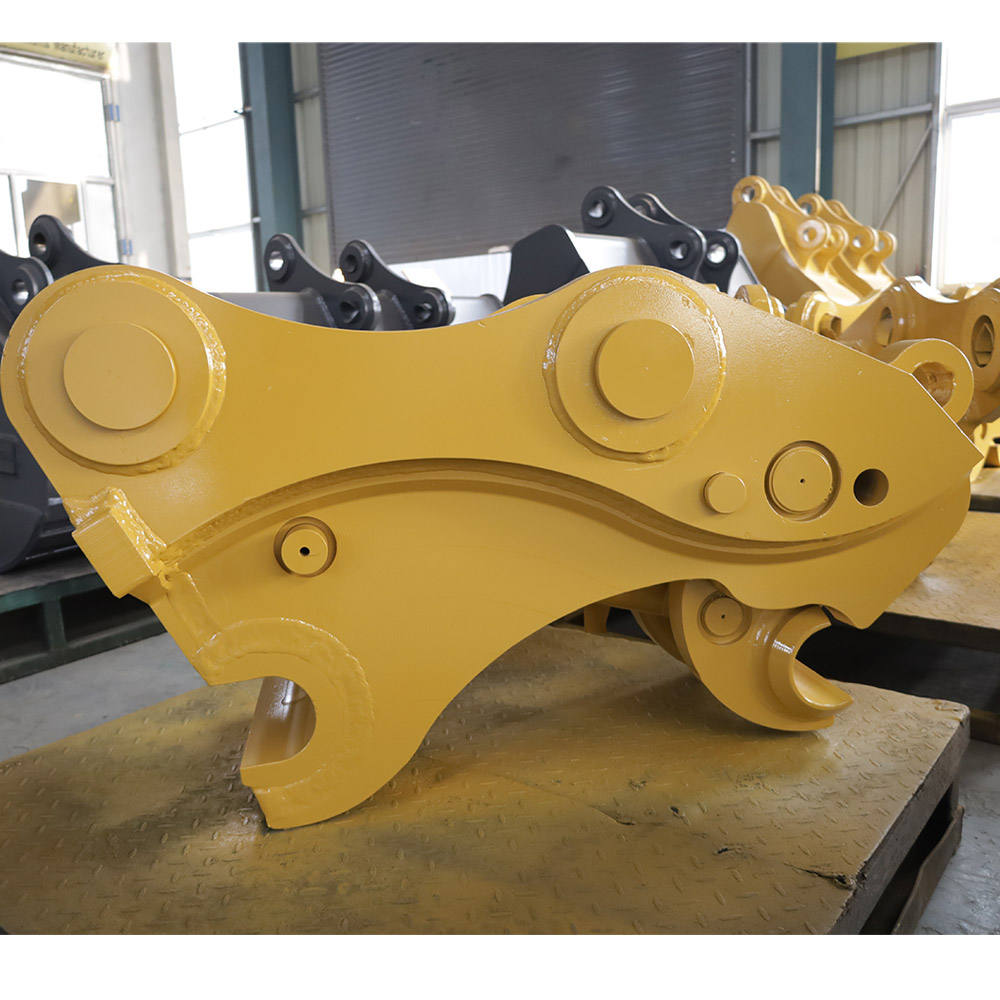

An Excavator Quick Coupler, also known as a Quick Hitch, enables fast and secure connection between the bucket pin grabber and a wide range of attachments, including buckets, hydraulic breakers, plate compactors, log grapples, rippers, and more.
By allowing attachments to be changed quickly and efficiently, the quick coupler significantly expands the versatility of the excavator, reduces downtime, saves labor time, and improves overall working efficiency on the job site.
Model | EHC4T | EHC6T | EHC10T | EHC22T | EHC30T | EHC45T | EHC60T | EHC75T |
C.C.Distance(mm) | 86-200 | 230-270 | 380-420 | 460-480 | 473-540 | 510-580 | 620-710 | 600-800 |
Area Distance(mm) | 86-185 | 155-170 | 232-315 | 306-340 | 375-411 | 420-510 | 580-670 | 620-750 |
Pin Dia.(Ø) | 25-40 | 45-50 | 50-70 | 70-80 | 80-90 | 100-110 | 110-120 | 120-140 |
Apply To(ton) | 1.5-4 | 5-8 | 9-16 | 17-24 | 25-33 | 35-48 | 50-65 | 70-79 |
