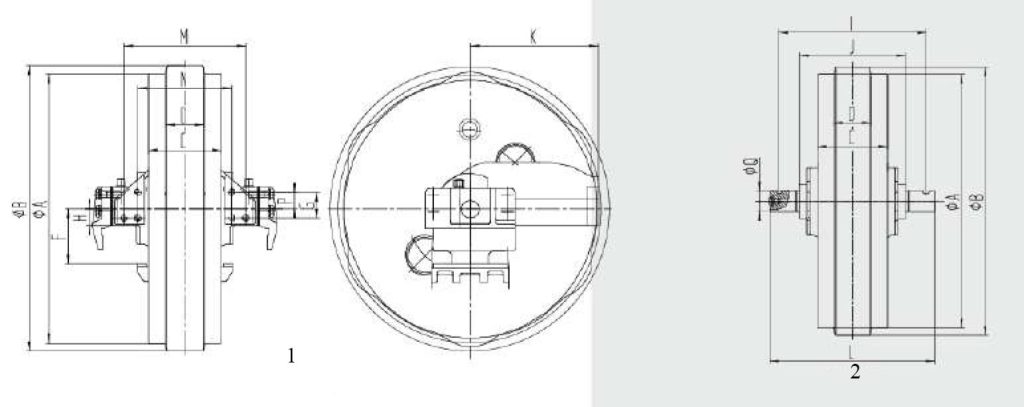

Model | Type | A | B | C | D | F | G | H | I | J | K | L | M | N | P | Q |
BI680-1A | 1 | 680 | 720 | 164 | 85 | 136 | 66 | 39.5 | ﹘ | ﹘ | 320 | ﹘ | 290 | 218 | 38 | ﹘ |
BI680-1B | 1 | 680 | 720 | 190 | 101 | 139 | 66 | 43 | ﹘ | ﹘ | 330 | ﹘ | 316 | 244 | 42 | ﹘ |
BI730-1 | 1 | 730 | 774 | 204 | 105 | 163.5 | 95/65 | 45 | ﹘ | ﹘ | 432 | ﹘ | 354 | 250 | 104 | ﹘ |
BI800-1 | 1 | 800 | 850 | 245 | 121 | 176 | 110/90 | 63 | ﹘ | ﹘ | 432 | ﹘ | 420 | 290 | 107 | ﹘ |
BI880-2 | 2 | 880 | 925 | 270 | 132 | ﹘ | ﹘ | ﹘ | 556 | 384 | ﹘ | 596 | ﹘ | ﹘ | ﹘ | 94 |
The above are standard dimensions and can be customized upon request. | ||||||||||||||||
